워크스테이션급 플랫폼 인텔® Core™ i9/i7/i5/i3 프로세서(14세대, 코드명: RPL-S Refresh/RPL-S/ADL-S)와 인텔® R680E 칩셋을 탑재한 NEX-3000 PEG 시리즈는 워크스테이션급 성능을 제공하며, 최대 36%의 CPU 성능 향상을 제공합니다. 이 시리즈는 최대 200W의 NVIDIA® 또는 AMD 그래픽 엔진을 지원하는 최대 4개의 PCIe 확장 슬롯을 갖추고 있으며, 1개의 Mini PCIe 및 2개의 M.2로 확장할 수 있습니다. 최대 64GB의 PCIe 4.0 및 DDR5 4800MHz 메모리를 지원하는 NEX-3000 PEG 시리즈는 로봇 제어, 스마트 제조, 차량 컴퓨팅 및 모든 Edge AI 애플리케이션과 같은 AIoT 애플리케이션을 지원하는 강력한 성능과 유연성을 제공합니다.

• 주요특징
• 제품정보
• Download

Features

• Workstation-grade Platform : Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) running with Intel® R680E PCH supports max 65W TDP CPU
• Supports outstanding AI computing productivity by NVIDIA®/AMD graphics card, up to 200W power budget
• USB 3.2 Gen 2x2 offers a max speed of 20Gbps data transfer
• DC 12V to 50V wide range power input, Software Ignition Control
• 4 Independent 2.5GigE IEEE 802.3at PoE+ LAN, 2 GigE LAN
• Expansion : 1 PCIe x16 slot with x16 signal, 1 PCIe x16 slot with x4 signal , 1 M.2 Key B, 1 M.2 Key E, 1 Mini PCIe
• Supports multiple 5G/WiFi/BT/4G/LTE/GPRS/UMTS
• Supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0
• Storage : 4 front-access 2.5" SSD Tray, M.2 Key M

•


  Feature Highlights

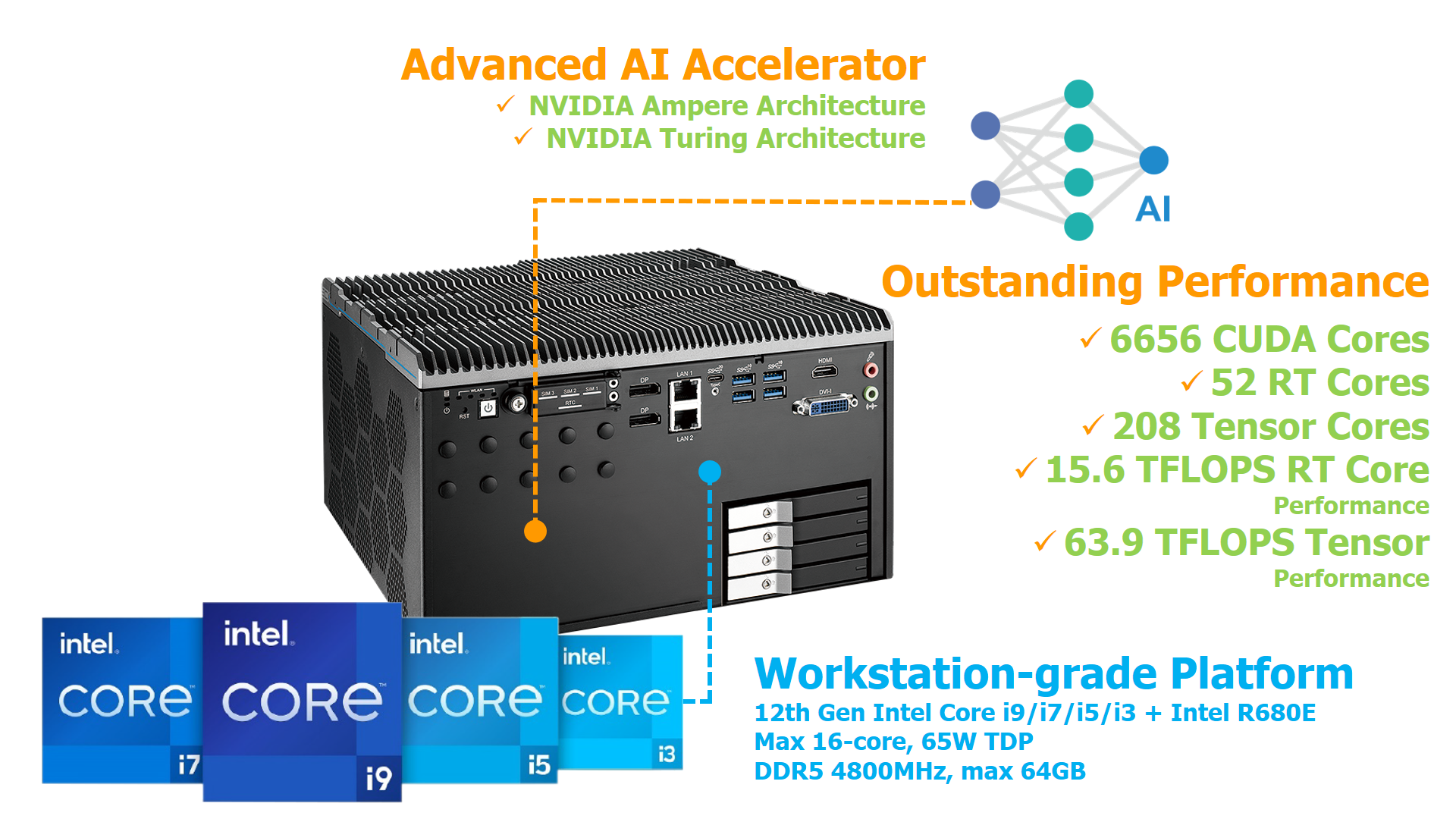

  High-speed AI Inference Platform

  • Workstation-grade Platform : Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S), up to 65W TDP CPU supported
  • Dual DDR5 5200MHz SO-DIMM, up to 96GB Memory
  • Supports performance hybrid architecture and advanced AI capabilities for smarter and faster applications
  • Optional delivers outstanding AI computing productivity supporting max 6656 CUDA Cores, 52RT Cores, 208 Tensor Cores, delivers 15.6 TFLOPS RT Core performance, and 63.9 TFLOPS Tensor Core performance
  • High-speed data transfer : PCIe 4.0 (16GT/s), USB 3.2 Gen 2x2 Type-C (20G), USB 3.2 Gen 2 (10G), SATA III (6G), 2.5GigE LAN (2.5G), GigE LAN (1G)
  • Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications

•

  Compact Integration

  • GigE Vision : 2 GigE LAN, 4 2.5GigE IEEE 802.3at PoE+ (25.5W/48V), optional with X-coded M12 Connector
  • USB Vision : 6 10G USB 3.2 Gen 2, 1 20G USB 3.2 Gen 2x2 Type-C
  • 4 COM RS-232/422/485, 3 SIM Socket, 32 Isolated DIO
  • Max 4 external 2.5” SSD/HDD trays, Software RAID supported
  • Compact M.2 Configurations : M.2 Key B, M.2 Key E, M.2 Key M
  • Intel Deep Learning Boost (Intel DL Boost) and Intel Distribution of OpenVINO toolkit for AI Computing
  • Optional supports advanced NVIDIA Ampere Architecture and NVIDIA Turing Architecture by low-profile graphics cards

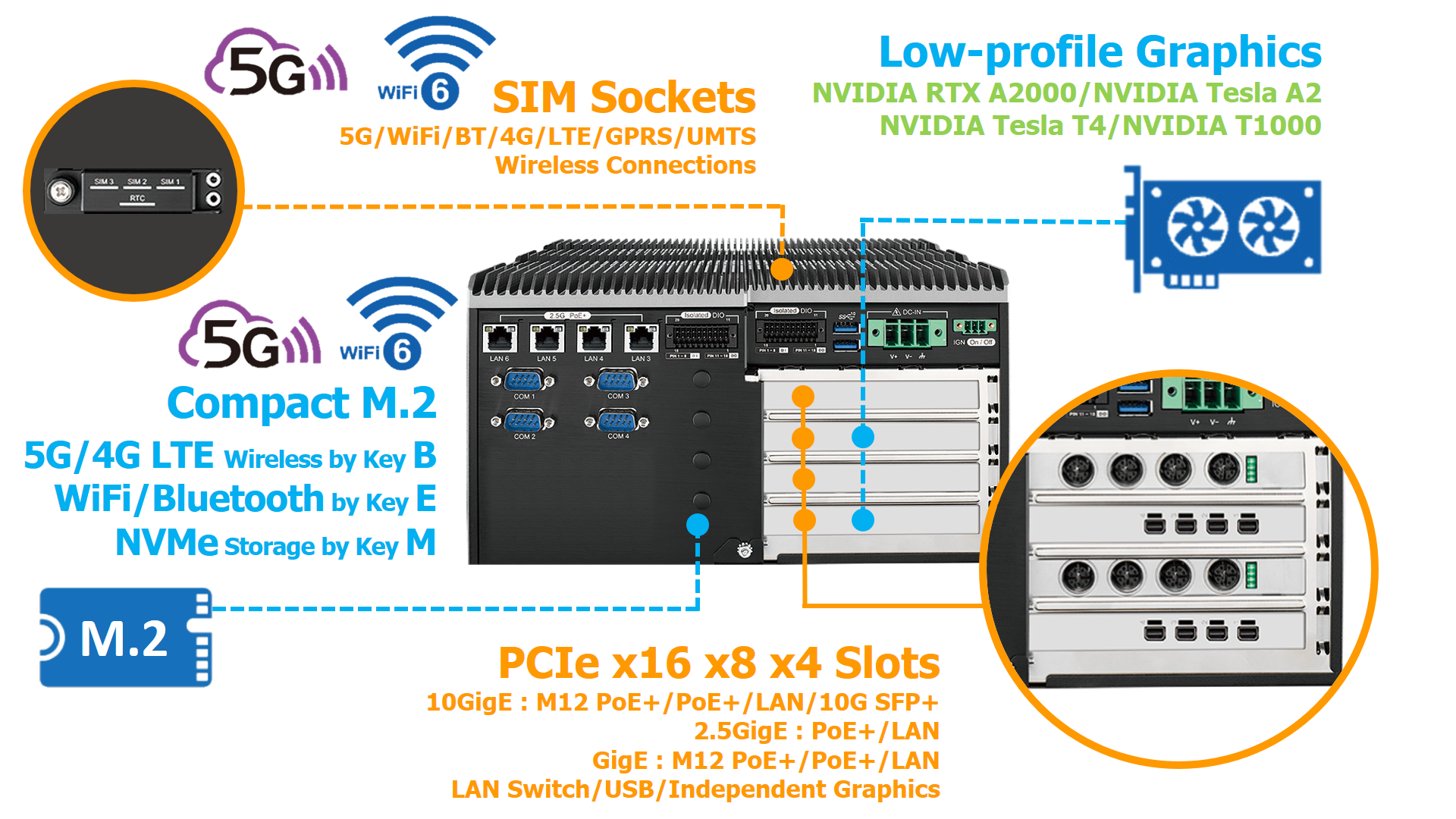

  Flexible Configuration

  • Levels of Independent Low-profile PEG : NVIDIA RTX A2000, NVIDIA Tesla A2, NVIDIA Tesla T4, NVIDIA T1000
  • Versatile product configuration for project requirements
  • SIM sockets for multiple 5G/WiFi/BT/4G/LTE/GPRS/UMTS wireless connections
  • PCIe expansions for multiple 10GigE M12 PoE+ LAN, 10GigE PoE+ LAN, 10GigE LAN, 10G SFP+, 2.5GigE PoE+ LAN, 2.5GigE LAN, M12 PoE+ LAN, PoE+ LAN, GigE LAN, LAN Switch, USB, or Independent Graphics
  • Compact Expansions : Mini PCIe, M.2 Key B, and M.2 Key
•

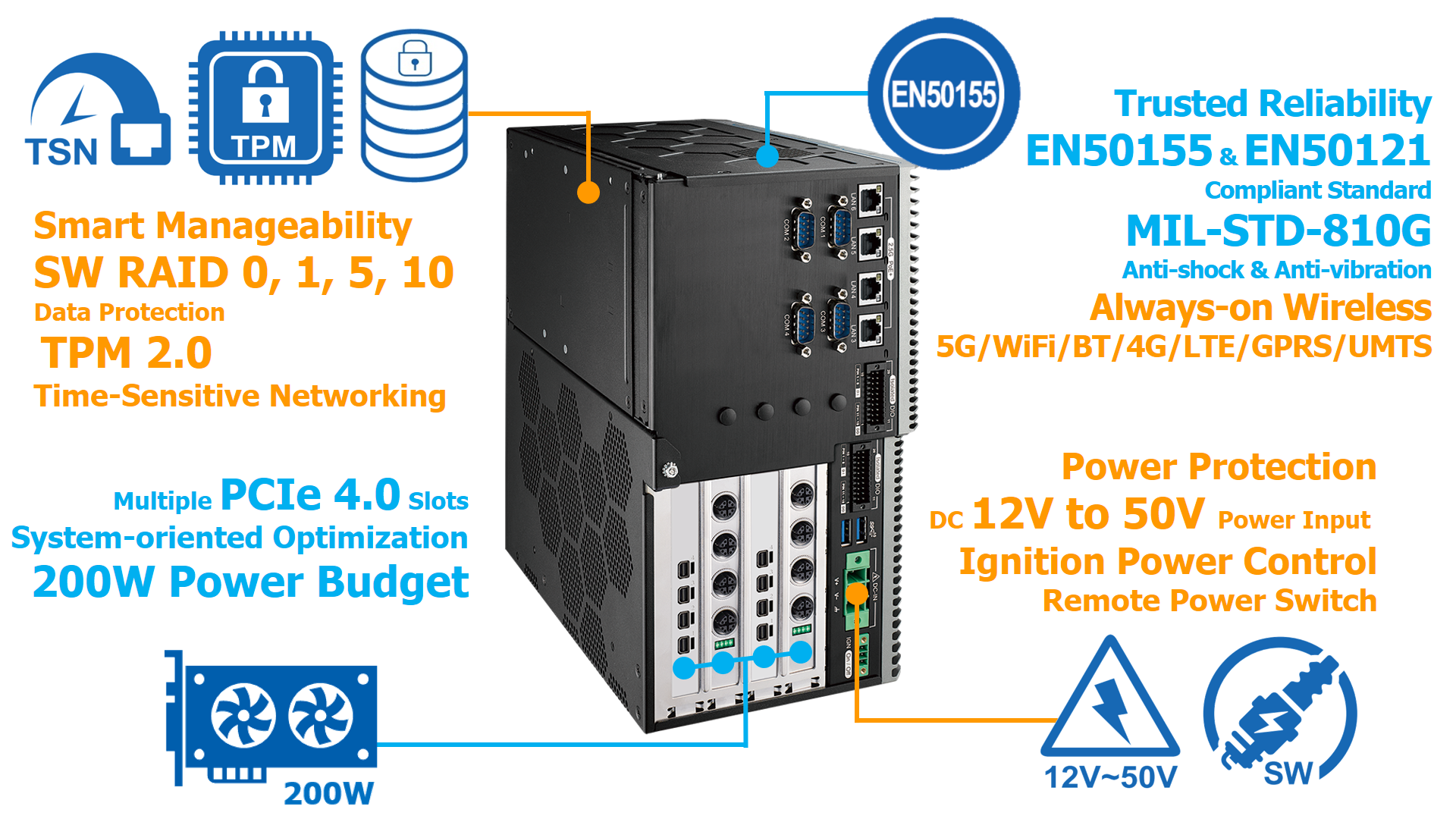

  Optimized Operation

  • Max 200W power budget for independent graphics cards
  • Multiple 5G/WiFi/BT/4G/LTE/GPRS/UMTS supports non-stop wireless data transfer
  • Lockable SSD/HDD trays, RAID 0, 1, 5, 10 Data Protection
  • DC 12V to 50V wide range power input
  • Software Ignition Power Control for in-vehicle applications
  • Anti-shock, Anti-vibration
  • EN50155, EN50121-3-2
  • Real-time capable with Intel Time Coordinated Computing (Intel TCC) and support for Time-Sensitive Networking (TSN)
  • Smart System Management : Intel vPro, TPM 2.0, PXE, Wake on LAN, Watchdog Timer
